LASER CONTOUR CUTTING SYSTEM FOR FERROUS AND NON-FERROUS METAL SHEETS
“SLCM 126” |
|
|

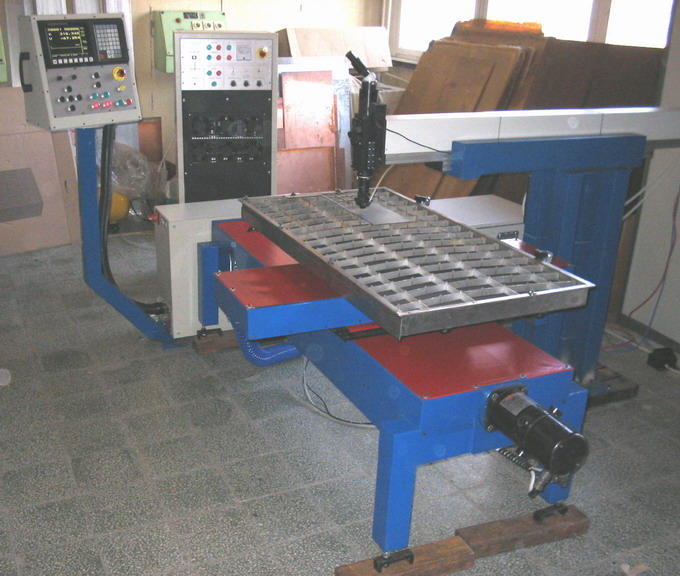

“SLCM 126”is suitable for manufacturing metal parts with complex small-sized profile and is very efficient in short series production.
“SLCM 126”consists of:
- Nd:YAG laser - X-Y table - X-Y CNC system |
|
|
| Laser type | Nd:YAG |
| Mode of operation | free running, repetitive pulses |
| Pulse energy | 10 J max |
| Pulse duration | 0.7 to 2 ms, continuously tuneable |
| Max. repetition rate | 100 Hz |
| Average output power | 150 W |
| Electric power consumption | 10 kVA |
| Electric line required | 3P+N; 380 V, 32 A |
| Cooling system | two circuits, water-to-water |
| External water supply | 12 l/min |
| Application | cutting of ferrous and non-ferrous sheet materials (up to 2 mm in thickness) |
| Processing speed | 300 mm/min random shaped contour with1 mm thick non-ferrous sheet |
| Cutting method | gas jet aided laser cutting |
| Gas consumption (air/oxygen) | 7.5 m3/hour at 2 - 4.5 atm |
| X-Y table | 1200mm x 600 mm with ballscrews |
| Position control | TSF – PC-based CNC system, G-coding |
| Servoamplifiers | DC4QR |
| Laser energy meter |
