CNC MACHINE FOR OXYFUEL AND/OR PLASMA CUTTING
SPGCM
FEATURES

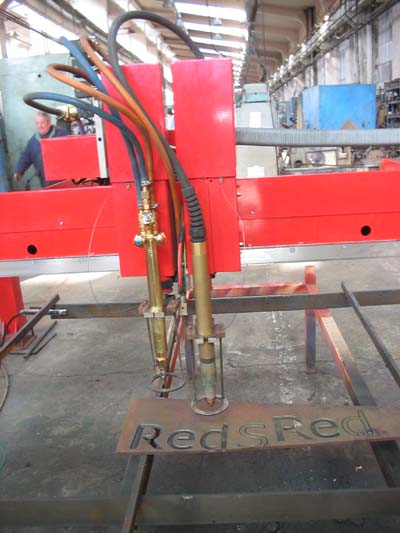

  • COMBINATION OF TWO CUTTING PROCESSES
    • OXYFUEL
      • "HARRIS" EQUIPMENT
    • PLASMA
      • "HYPERTHERM" EQUIPMENT

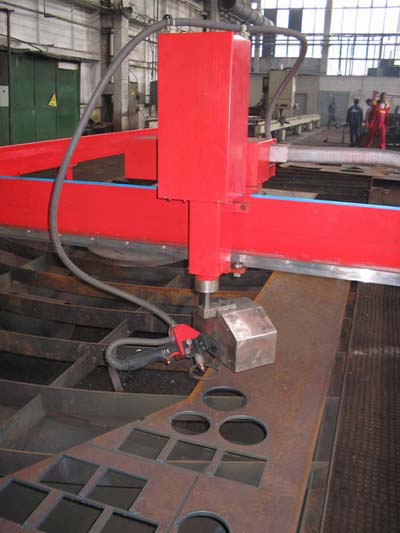

  • AUTOMATIC TORCH ANGLE CONTROL 15o, 30o, 45o AND 90o
  • TRIPLE TORCH CONTOUR CUTTING
  • AUTOMATIC TORCH HEIGHT CONTROL SYSTEM OF EACH TORCH
  • CNC SYSTEM “TSF
  • PROPRIETARY SOFTWARE FOR PARTS PLACEMENT ON THE SHEET
  • CUSTOM DIMENSIONS OF THE X-Y TABLE


TECHNICAL SPECIFICATIONS
SPECIFICATIONS

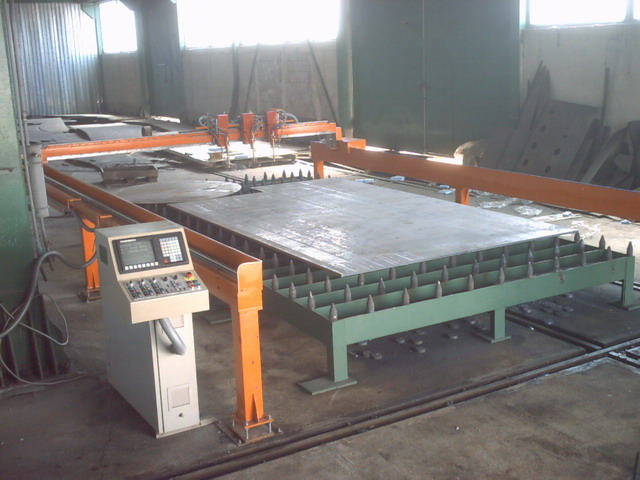

X-Y TABLE DIMENSIONS:
- Õup to 3500 mm
- Õup to 10 000 mm
NUMBER OF TORCHESup to 3
DEPTH OF CUTTING:
- PLASMAup to 45 mm
- OXYFUELup to 300 mm
X AND Y AXES DRIVINGRack and pinion transmition Ì = 1.5 mm
POSITION FEEDBACK Õ AND Y AXESEmbedded pulsecoder
POSITIONING ACCURACY IN THE WHOLE WORKING AREA+/- 0.3 mm
REPEATABILITY+/- 0.05 mm
MAXIMUM SPEED 10 m/min
